SS Tube/Pipe Mill Machine for Public Facility Pipes Manufacturer

没有此类产品
CONTACT US
Show
Parameters
Detail
Application
Corresponding parameter set not found, please add it in property template of background

Brand:
YXH
Product:
SS tube/pipe mill machine for public facities pipes
Colour:
White/Green/Blue
Voltage:
220/380/415/440V
Useful time:
20 years
Warranty Time:
1 year

After-Sales
Service Provide:
Offer advisable investing solution on ss tube/pipe mill machine
Colour:
White/Green/BlueVoltage:220/380/415/440V

Type
Horizontal
Shaft
Dia(mm)
Vertical
Shaft
Dia(mm)
Material
Pipe
Diameter(mm)
Pipe
Thickness(mm)
Capacity
(m/min)
Major Power
(KW)
Installation
Size
(L*W)(m)
S-ZG40
40
25
ss,cs,etc
6-31.8
0.2-1.0
1-20m/min
5.5KW
20.0×1.0
ZG40 40
40
25
ss,cs,etc
8-50.8
0.2-1.5
1-15m/min
7.5KW
21.5×1.1
B-ZG40
40
25
ss,cs,etc
8-63.5
0.3-2.0
1-10m/min
11KW
21.5×1.1
ZG50
50
30
ss,cs,etc
19.05-76.2
0.4-2.5
1-7m/min
15KW
24.0×1.2
ZG60
60
40
ss,cs,etc
38.1-114
0.5-3.0
1-5m/min
15KW
26.0×1.4

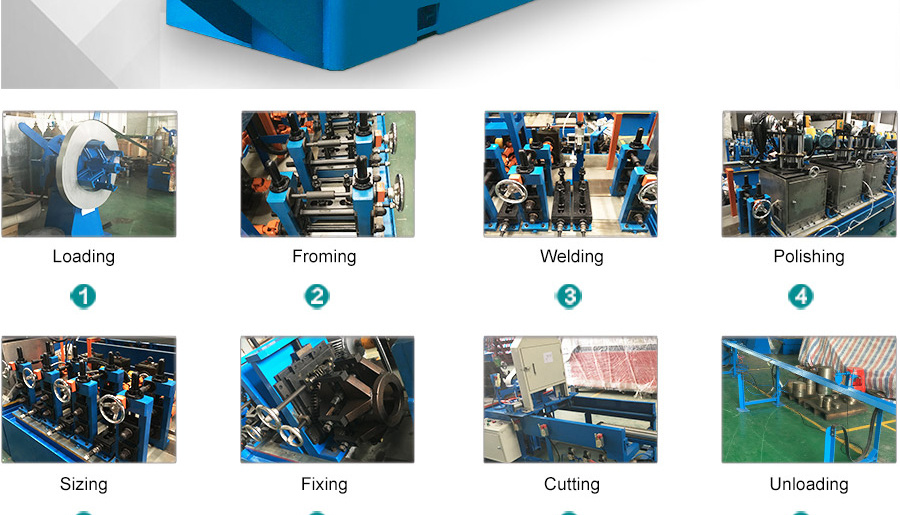

SS Tube/Pipe Mill Machine ’s Line-Up Arrangement (Stainless Steel)

tube mill machine

  • Un-coiler

  • Strip guide + Strip leveler

  • Forming Section ( furniture: break down 3~4 + by-pass 3 + Fin pass 3~4 )

  • Welding Section (Squeezing Roll set 3) + anti-twister (Welder: Tig/Plasma+Tig/Tig+Plasma+Tig, according to

      required working thickness & speed)

  • Seam polisher 3~4 units

  • 1st sizing 2 (for decorative only one section 3~4 units required)

  • Turk-Head (1 unit for round, 2~3 units for square)

  • Flying Cutter

  • Pipes collector



Key words : stainless steel tube mills steel tube mill manufacturer stainless steel tube mill manufacturer tube mill manufacturer

Pipe Mill Machine

SS Tube/Pipe Mill Machine For Public Facility Pipes Advantage:

  • Easy-operation
  • Stable mechanical performance
  • Accuracy in end product result
  • Economic input energy (source)
  • Easy in maintenance (usage targeting at 25 years)
  • Fast production speed with proper welding system
  • Much affordable in initial investment
  • Require minimized work force in operation



keyword: ss tube mill machine ss pipe mill machine ss pipe machine ss tube machine
