ss pipe polishing machine

Square Stainless Steel Pipe Polishing Machine Video Pipe Polishing Machine Application
square pipe polishing machine To polish the surface of square pipes to be mirror polishing, mat polishing, sand polishing

square tube polishing machine




Product
32 Head Square Tube Polishing Machine/Equipment
tube polishing equipment
Model
32Head
Function
Polishing tube, Square Tube Polishing Machine
Pipe Material
Stainless steel; Carbon steel; Copper etc.
Pipe Thickness
0.2~2.5 mm Square Tube Polisher Machine
Pipe Diameter
10mm×10mm~45mm×95mm
Capacity
3~30m/min  tube Polisher Machine
Power(W)
4X32'kw
Weight(T)
11.5T
Size
22.5mx1.35m tube Polishing Machine
Operation
1 person 2 machines
Delivery time
40 days after receiving the deposit
Application
Mainly to polishing square tubes

3D effect chart

tube polishing equipment

Field installation effect chart

square pipe polishing machine

For square and rectangle tube polishing     Applicable for...
tube polisher machine

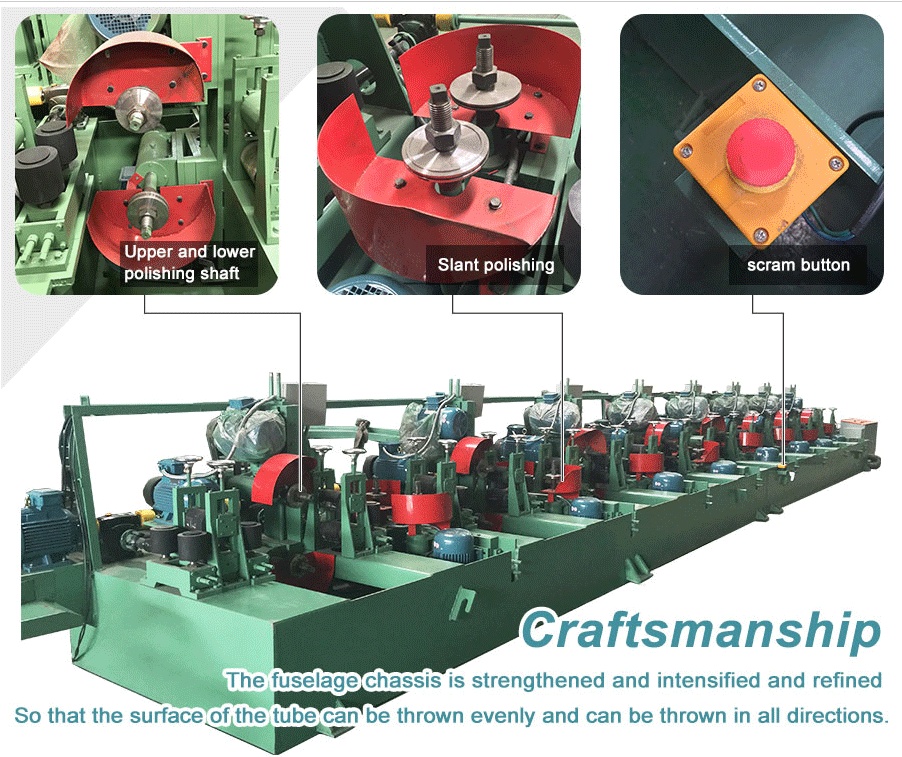

Square Tube Polishing Machine/Equipment characteristic:
  • handwheel adjustment, easily operate , improved working efficiency
  • heightening motor, easy for maintenance and replacement
  • thick steel plate whole welding ,more firmer
  • installed dovetail slider, polishing smoothly , polish effects better
  • steel plate milling & aging treatment
  • speed controlled by frequency conversion motor ,power saving

Passed the IS09001:2000 international standard certification
