Stainless Steel Pipe Production Line for Sanitary Pipes

Affiliate classification
没有此类产品
CONTACT US
Show
Parameters
Detail
Application
Corresponding parameter set not found, please add it in property template of background
Brand:
YXH
Product:
Steel Pipe/Tube Production Line
Colour:
White/Green/Blue
Voltage:
220/380/415/440V
Useful time:
20 years
Warranty Time:
1 year

After-Sales
Service Provide:
Engineers available to service machinery overseas
Usage:

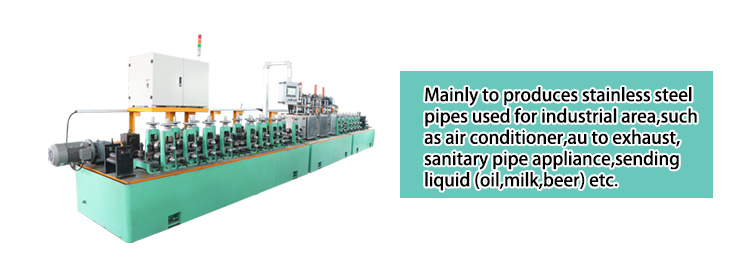

Mainly to produces stainless steel pipes/tubes used for sanitary pipes

Type
Horizontal
Shaft
Dia(mm)
Vertical
Shaft
Dia(mm)
Material
Pipe
Diameter(mm)
Pipe
Thickness(mm)
Capacity
(m/min)
Major Power
(KW)
Installation
Size
(L*W)(m)
ZG40
40
25
ss,cs,etc
8-50.8
0.5-2.0
1-5m/min
7.5KW×1'+
5.5KW×1'
20.0×1.5
ZG50
50
30
ss,cs,etc
25.4-63.5
0.5-3.0
1-4m/min
11KW×1'+
5.5KW×1'
24.0×1.5
ZG60
60
40
ss,cs,etc
50.8-114
0.6-3..5
1-3m/min
15KW×2'
26.0×1.8

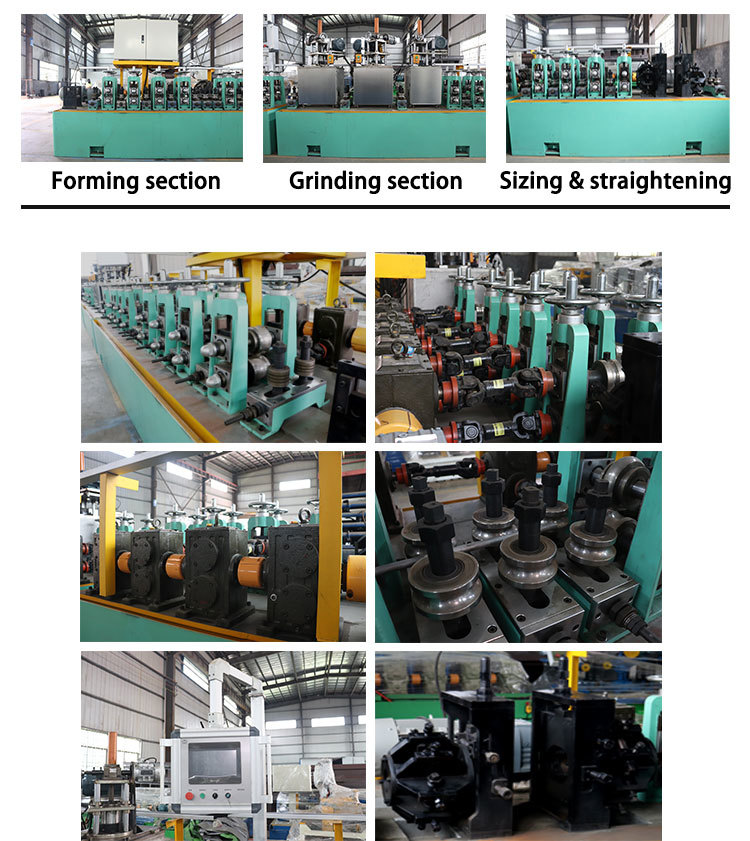

Tube Mill Machinery's Line-Up Arrangement (Stainless Steel):
ss tube mill machinery
  • un-coiler
  • strip jointer(optional)
  • horizontal accumulater (optional)
  • strip guide + strip leveler
  • forming section (industrial : break down 4 + by - pass 3 +fin pass 4)
  • welding section (squeezing roll set 3) + antitwister ( welder : Tig/Plasma + Tig/Tig +Plasma + Tig, according to required working thickness & speed)
  • ECT (optiontal)
  • seam polisher 3~4 units
  • 1st sizing 2 (for decorative only one section 3~4 units required)

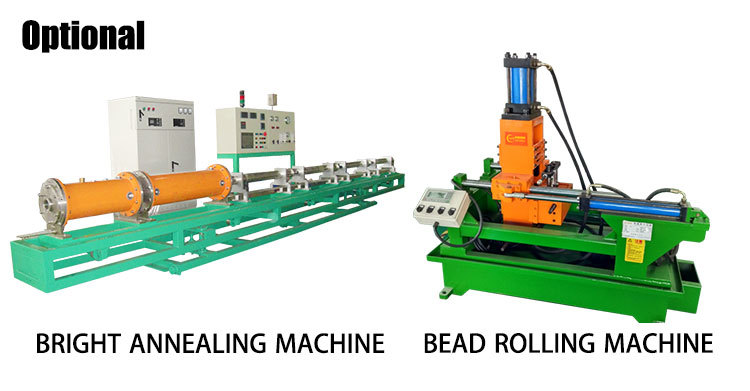

  • bright annealing +  anti-twister (optional)
  • 2nd sizing(3~4)
  • turk-head (1 unit for round, 2~3 units for square)
  • ECT (eddy current tester)
  • OD check (optional)
  • flying cutter
  • pipes collector
  • inside bead rolling (min. OD 16mm, max speed 6 m/min)
To suit for Industrial pipes: All units are applicable for the description stated above.
At ASTM standard: (1) A312 : Mechanical pipes
(2) A249 : Heat-exchanger & Condensor .......etc.
(3) A269 : Boiler piping ......etc.
(4) A270 : Sanitary application.

Key words: tube production line pipe production line steel pipe production line

pipe production line


Stainless Steel Pipe Production Line  Characteristic:
  • The whole machine is welded by Q235 steel plate, world’s top five hundred BAOSTEEL material ,machine vibration aging treatment
  • All the key parts are processing by CNC machine centre to ensure the precision of equipment
  • Adopt Dong Feng auto transmission ,enhanced turbine gearboxes ,ensure stability of transmission system
  • Machine can be customized by customer’s requirements
