ZG70 Stainless Steel Pipe Making Machine

Affiliate classification
没有此类产品
CONTACT US
Show
Parameters
Detail
Application
Corresponding parameter set not found, please add it in property template of background

pipe making machine-70

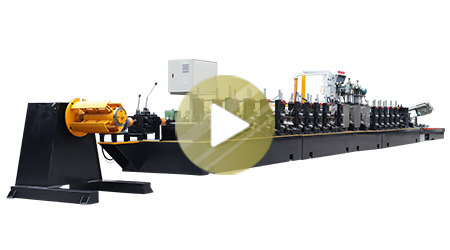

ZG70 Pipe Making Machine Line Running Video ZG70 Stainless Steel Pipe Making Machine/Pipe Production Line mainly produces stainless steel pipes/carbon steel pipes/galvanized steel pipes, which pipe diameter 60mm to 168mm, thickness 1.0mm to 4.0mm.
pipe making machine-70



Keyword: Stainless steel pipe making machine Pipe production line Carbon steel pipe machine Galvanized steel pipe making machine Pipe line

Pipe production machine Steel pipe machine

Brand:
YXH
Product:
 ZG70 Steel Pipe Making Machine
Colour:
White/Green/Blue
Voltage:
220/380/415/440V
Useful time:
20 years
Warranty Time:
1 year

Machine Model:
ZG70 Stainless Steel Pipe Making Machine/Pipe Production Line
Pipe Diameter Round Pipe: 60mm to 168mm
Pipe Thickness Round Pipe: 1.0mm to 4.0mm


Type

Horizontal

Shaft

Dia(mm)

Vertical

Shaft

Dia(mm)

Material

Pipe

Diameter(mm)

Pipe

Thickness(mm)

Capacity

(m/min)

Major Power

(KW)

Installation

Size

(L*W)(m)

S-ZG40

40

25

ss,cs,etc

6-31.8

0.2-1.0

1-20m/min

5.5KW

20.0×1.0

ZG40

40

25

ss,cs,etc

8-50.8

0.2-1.5

1-15m/min

7.5KW

21.5×1.1

B-ZG40

40

25

ss,cs,etc

8-63.5

0.3-2.0

1-10m/min

11KW

21.5×1.1

ZG50

50

30

ss,cs,etc

19.05-76.2

0.4-2.5

1-7m/min

15KW

24.0×1.2

ZG60

60

40

ss,cs,etc

38.1-114

0.5-3.0

1-5m/min

15KW

26.0×1.4

ZG80 80 50 ss,cs,etc 76.2-168 1.0-4.0 1-3m/min 22KW 38.0x2.2
ZG100 100 60 ss,cs,etc 159-325 1.0-6.0 1-3m/min 30KW 56.0x2.3
NOTE we can customize according to your requirement

Keyword: Stainless steel pipe making machine Pipe production line Carbon steel pipe machine Galvanized steel pipe making machine

Pipe line Pipe production machine Steel pipe machine

ZG70 Steel Pipe Making Machine - Whole Line Machine

Uncoiler - Forming Section - Welding Section - Grinding Section - Sizing Section - Turkey Head - Fly Saw Cutter - Run Out Table

Pipe making machine- whole line

ZG70 Steel Pipe Making Machine - Uncoiler

pipe making machine-uncoiler

ZG70 Steel Pipe Making Machine - Forming Section

pipe making machine-forming

ZG70 Steel Pipe Making Machine - Welding Section

pipe making machine-welding

ZG70 Steel Pipe Making Machine - Grinding Section

pipe making machine-grinding

ZG70 Steel Pipe Making Machine - Sizing Section

pipe making machine-sizing

ZG70 Steel Pipe Making Machine - Turkey Head

pipe making machine-turkey head

ZG70 Steel Pipe Making Machine - Fly Saw Cutter

pipe making machine-fly saw cutter

ZG70 Steel Pipe Making Machine - Run Out Table

pipe making machine-run out table



Keyword: Stainless steel pipe making machine Pipe production line Carbon steel pipe machine Galvanized steel pipe making machine Pipe line

Pipe production machine Steel pipe machine

ZG70 Steel Pipe Making Machine - The finished ss/ms/gi pipes application:

Water Pipes/Industrial Pipes/Building Structure,etc.



Keyword: Stainless steel pipe making machine Pipe production line Carbon steel pipe machine Galvanized steel pipe making machine Pipe line

Pipe production machine Steel pipe machine
