ZG70 Pipe Making Machine/Pipe Production Line


Category:

2022-11-15

 ZG70 Pipe Making Machine/Pipe Production Line

ZG70 pipe making machine

This ZG70 Pipe Making Machine/Pipe Production Line mainly produces big sizes stainless steel pipes/carbon steel pipes with diameter 60mm to 168mm, thickness 1.0mm to 4.0mm.

Next, let's introduce the various parts of this Pipe Making Machine/Pipe Production Line.

Part 1: Decoiler: Put the steel strip on the decoiler and convey it to the forming section. - ZG70 Pipe Making Machine/Pipe Production Line

Pipe Making Machine- Decoiler

Part 2: Forming Section: to make the strip to be round and prepare welding. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine- forming section

Part 3: Welding Section: Double welding touch system, the frist welding touch is pre-hear, the second welding touch is welding. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine- double welding torch

Part 4: Grinding Section: Totally enclosed automatic grinding heads. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine-grinding head

Part 5: Sizing & Straightening Section: to improve the roundness; Turkey Head can make round pipe to square pipe/rectangle pipe/oval pipe.. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine-sizing section

Part 6: Cutter: Fly saw cutter. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine-fly saw cutter

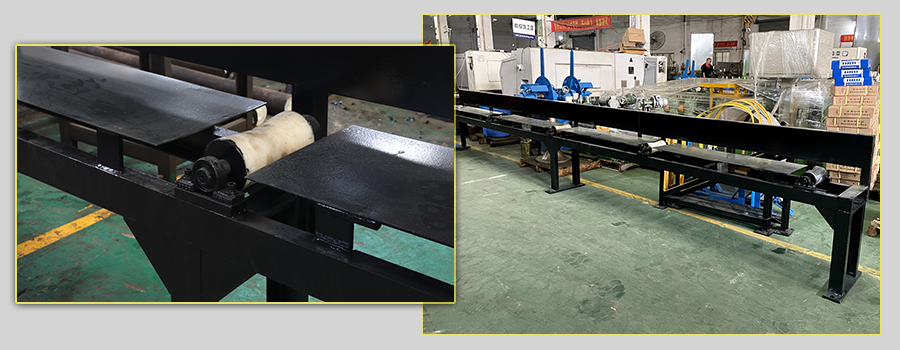

Part 7:Run out table: after cutting pipe, waiting for packing. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine-run out table

Part 8: Gear Box: Industrial Gear Box. - ZG70 Pipe Making Machine/Pipe Production Line

pipe making machine-gear box

Part 9: Roller/Molds/Dies Set: Install on pipe making machine to make steel pipes. - ZG70 Pipe Making Machine/Pipe Production Line

Roller/Mold/Die

The finished steel pipes application: water pipes,industrial pipes, building structure,etc.

pipe production line-application

If you have any needs, please contact us.
