Pipe Production Line：ZG60 Model Steel Pipe Making Machine with a brief introduction
Category：
2020-09-21
ZG60 Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipmenthome and abroad，which is also convenient in operation and maintenance.
Brief introduction:
|
Item |
Specifications |
Remark |
|
|
Round Pipe |
OD SIZE: Φ50.8—Φ133mm |
Thickness (mm) |
0.5-3.0 mm |
|
Square pipe |
40×40—100×100mm |
|
0.5-3.0 |
|
Rectangle pipe |
20×60—80×120mm |
|
0.5-3.0 |
|
Pipe Length |
4m—10m |
||
|
Production speed |
Depend on the thickness |
||
|
Supply by |
electricity and the argon gas |
||
|
Power consumption |
ZG60:50 KW |
Practical Power consumption: 60%(about 30KW) |
|
|
Installation Size |
L× W× H: 26m×1.4m×1.6m |
||
|
Operators needed |
2 sets machines need 1 person |
||
Units Line-Up:
Processing:Un-coiler→ Forming Section→ Welding Section→ Grinding Section→ Sizing & Straightening Section→ Cutting Section→ Run out table
|
Sections |
Item |
Picture |
| 1） |

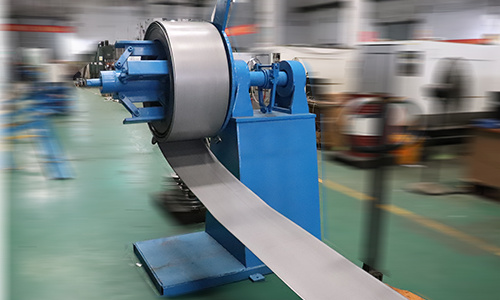

Un-coiler |
 |
| 2） |

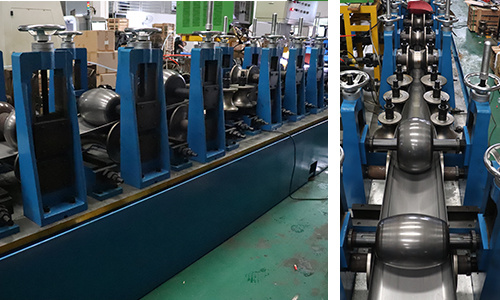

Forming Section |
 |
| 3） |

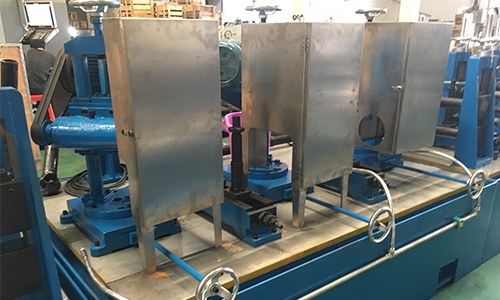

Welding Section |
 |
| 4） |
Seam Polishing Section |
 |
| 5） |

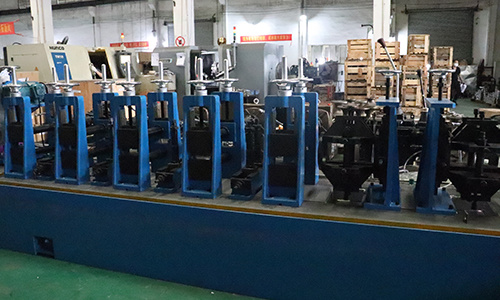

Sizing &Turk-Head |
 |
| 6） |

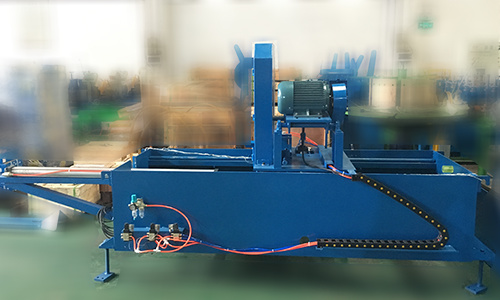

Cutting Section |
 |
| 7） |

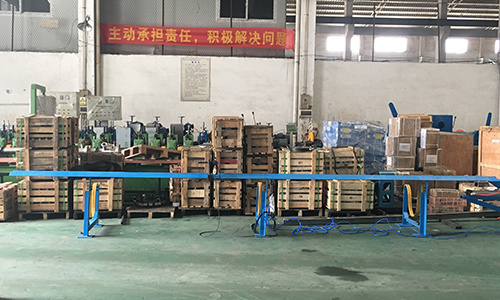

Run-out table |
 |
If you interested in our pipe production machine ,welcome to contact us!!!
