Tube Mill Equipment：S-ZG40 Model Stainless Steel Tube Mill with a brief introduction
Category：
2020-09-14
S-ZG40 Stainless Steel Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipment home and abroad，which is also convenient in operation and maintenance.
Brief introduction:
|
Item |
Specifications |
Remark |
|
|
Round Pipe |
ODSIZE: Φ6—Φ31.8 mm |
Thickness (mm) |
0.25—1.2 mm |
|
Square pipe |
10×10—25×25mm |
|
0.3—1.0 mm |
|
Rectangle pipe |
10×10—20×30mm |
|
0.3—1.0mm |
|
Pipe Length |
4m—10m |
||
|
Production speed |
1—12m/min |
||
|
Supply by |
electricity and the argon gas |
||
|
Installation Size |
L× W : 20.0m×1.0m |
||
|
Operators needed |
2 sets machines need 1 person |
||
Units Line-Up:
Processing:Un-coiler→ Forming Section→ Welding Section→ Grinding Section→ Sizing & Straightening Section→ Cutting Section→ Run out table
|
Sections |
Item |
picture |
| 1） |
Un-coiler |
 |
| 2） |

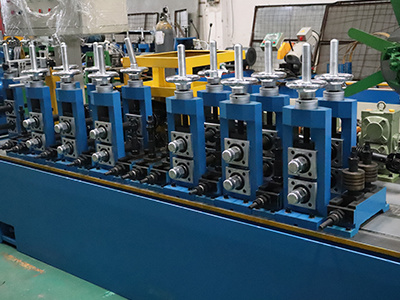

Forming Section |
 |
| 3） |
Welding Section |
 |
| 4） |
Seam Polishing Section |
 |
| 5） |

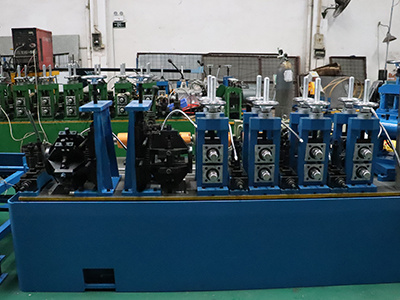

Sizing &Turk-Head |
 |
| 6） |

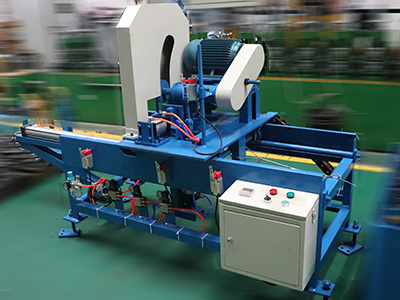

Cutting Section |
 |
| 7） |

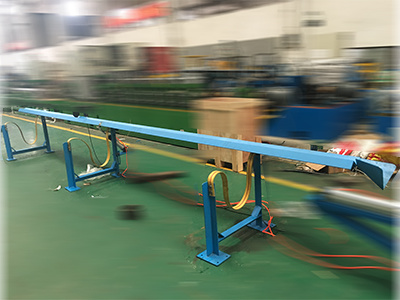

Run out table |
 |
If you are interested in our pipe making machine/tube mill equipment, welcome to contact us!
