Stainless Steel Pipe Production Machine for sending fluid tube

Stainless Steel Pipe Production Machine/Line mainly produces stainless steel pipes used for industrial area, such as sending liquid (water, mill, beer) etc.

Category：

SS Tube Mill for Industrial Pipes

Back to product list

Phone/Whatsapp：

+86 18818745372

Description

Commodity name: Stainless Steel Pipe Production Machine for sending fluid tube
Commodity ID: 1070397734528897024

Stainless Steel Pipe Production Machine/Line mainly produces stainless steel pipes used for industrial area, such as sending liquid (water, mill, beer) etc.

industrial stainless steel pipe production machine

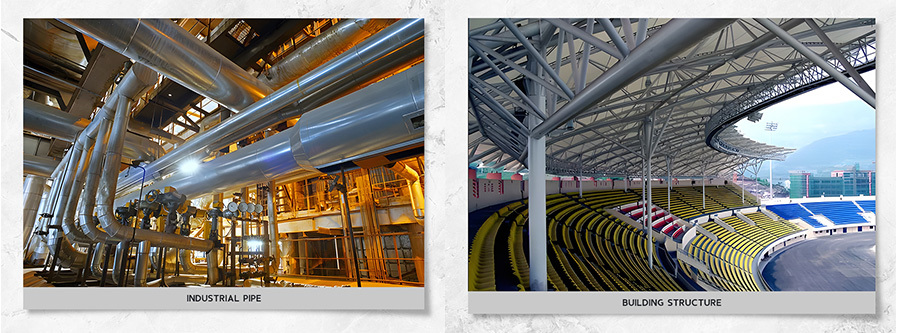

Industrial Pipe Production Machine/ Line is mainly producing industrial stainless steel pipes, such as heat exchangers, fluid pipes, sanitary pipes, automobile exhaust pipes, petrochemical, building materials, steel pipes, chemical equipment, etc.

Industrial Pipe Production Machine/Line Running Video						Stainless Steel Pipe Production Machine/Line mainly produces stainless steel pipes used for industrial area, such as sending liquid (water, mill, beer) etc.

Brand:	YXH	Product:	Industrial staiinless steel pipe/tube production machine
Colour:	White/Green/Blue	Voltage:	220/380/415/440V
Useful time:	20 years	Warranty Time:	1 year

Service Provide:

Pre-sales & After-sales

Usage

Mainly to produces stainless steel pipes/tubes used for industrial area, such as air condiitioner, auto exhaust,

sanitary pipe appliance,sending liquid(oil,milk,beer) etc.

Type	GG40	GG50	GG60	GG80	GG100	GG120
Pipe Diameter(mm)	12.7-50.8	25.4-76.2	38.1-114	50.8-168	133-273	159-325
Pipe Thickness(mm)	0.3-2.5	0.5-3.5	0.5-4.5	1.0-5.5	1.5-8.0	2.0-8
Major Power (KW)	2 motors driven front 11KW rear 7.5KW	2 motors driven front 15KW rear 11KW	2 motors driven front 18.5KW rear 15KW	2 motors driven front 22KW rear 18.5KW	2 motors driven front 30KW rear 22KW	2 motors driven front 45KW rear 30KW
Polishing Motors(KW)	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set
Note	we can customize according to client's requirement

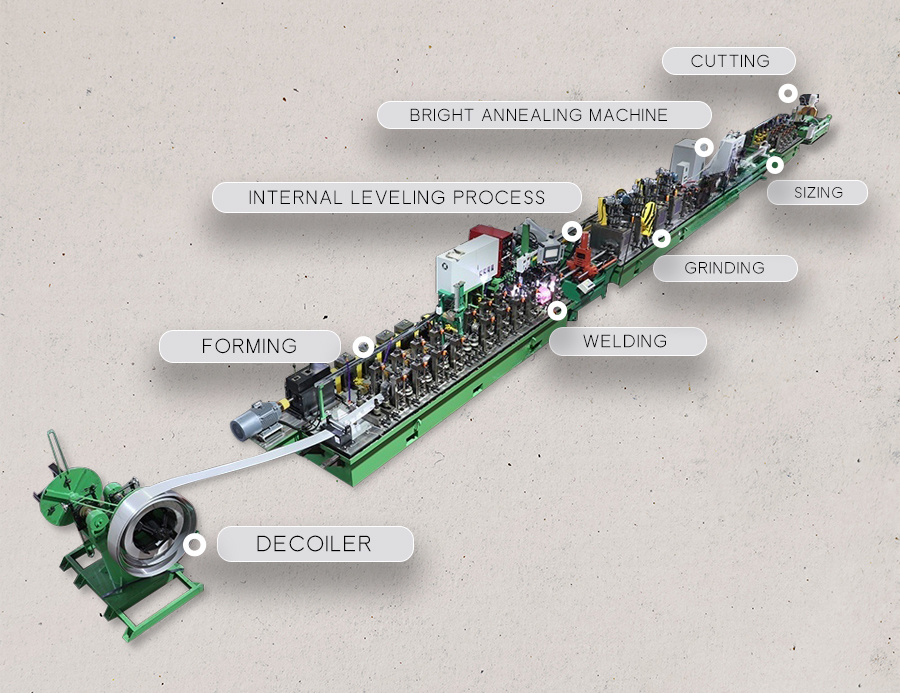

Industrial Pipe Production Line

Part 1- Decoiler : Put the steel strip on the uncoiler and conveyit to the forming section.

Pipe Production line - Decoiler

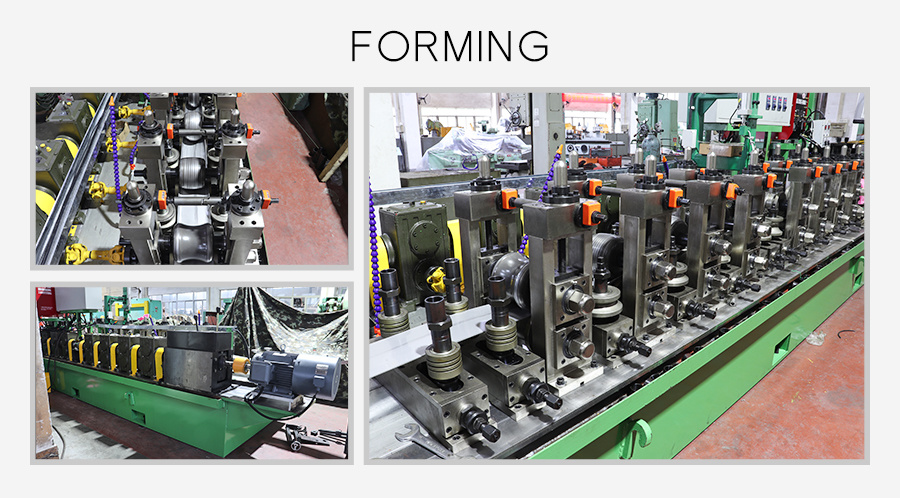

Part 2 - Forming Section : to make the strip to be round and prepare welding.

Pipe Production Line - Forming Section

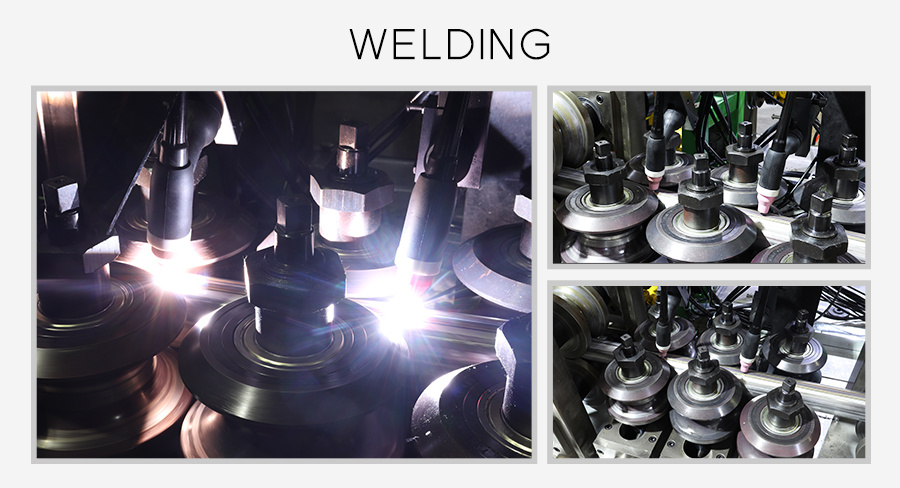

Part 3 - Welding Part : Double welding touch system: The first welding touch is preheat, the second welding touch is welding.

Pipe Production Line - Double Welding Torch

Part 4 - Bead Rolling Machine : is used for on-line treatment of welded joints of stainless steel pipe, rolling on the inner and outer welded joints repeatly to keep the joints smooth and make the welded pipe seamless.

Bead Rolling Machine

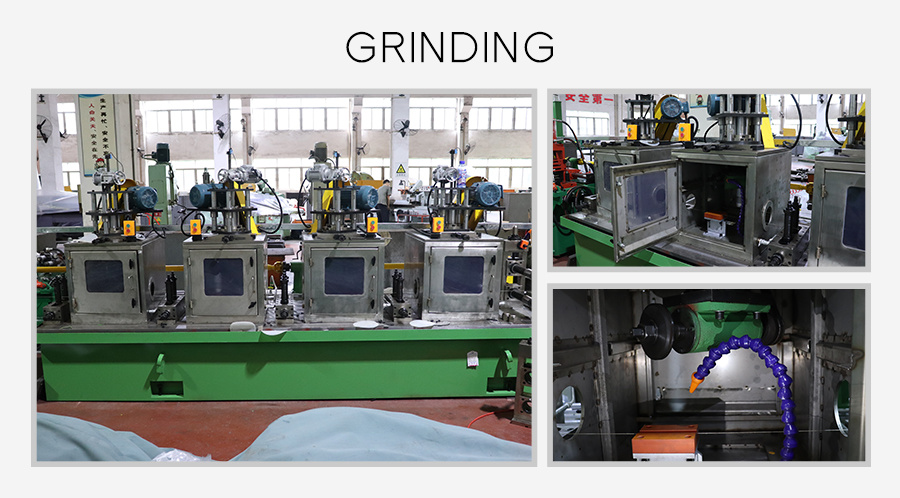

Part 5 - Grinding Section : grind the welding seam to make it smooth.

Fully automatic Grinding heads in closed design, in automatically pressing down polishing system by electric motor, easy adjustment, saving time and labor.

Pipe Production Line - Grinding Section

Part 6 - Bright Annealing Machine : By utilizing precise temperature-controlled heating and controlled slow cooling, this process relieves internal stresses induced by welding, restores the material's ductility and toughness, and prevents cracking during subsequent processing.

Bright Annealing Machine
