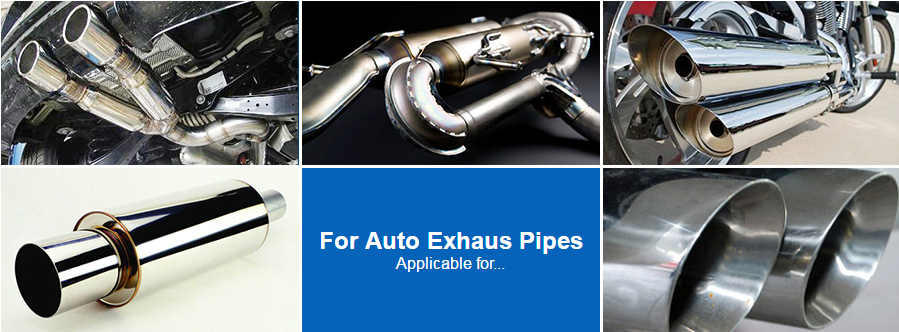

Stainless Steel Pipe Tube Manufacturing Machine for Auto-exhaust Pipes

Stainless Steel Pipe Tube Manufacturing Machine for Auto-exhaust Pipes, the tube manufacturing machine has high precision and high yield.


Phone/Whatsapp:

+86 18818745372

  • Description
    • Commodity name: Stainless Steel Pipe Tube Manufacturing Machine for Auto-exhaust Pipes
    • Commodity ID: 1070430301101641728

    Stainless Steel Pipe Tube Manufacturing Machine for Auto-exhaust Pipes, the tube manufacturing machine has high precision and high yield.

    Tube Manufacturing Machine

    Steel Pipe Tube Manufacturing Machine characteristic:
    • The whole machine is welded by Q235 steel plate, world’s top five hundred BAOSTEEL material ,machine vibration aging treatment
    • All the key parts are processing by CNC machine centre to ensure the precision of equipment
    • Adopt Dong Feng auto transmission ,enhanced turbine gearboxes ,ensure stability of transmission system
    • Machine can be customized by customer’s requirements

    Tube Manufacturing Machine

    Parameter Table: Stainless Steel Pipe Tube Manufacturing Machine

    Stainless Steel Pipe Tube Manufacturing Machine

    Stainless Steel Pipe Tube Manufacturing Machine's Line-Up Arrangement (Stainless Steel):

    Stainless Steel Pipe Tube Manufacturing Machine
    • un-coiler
    • strip jointer(optional)
    • horizontal accumulater (optional)
    • strip guide + strip leveler
    • forming section (industrial : break down 4 + by - pass 3 +fin pass 4)
    • welding section (squeezing roll set 3) + antitwister ( welder : Tig/Plasma + Tig/Tig +Plasma + Tig, according to required working thickness & speed)
    • ECT (optiontal)
    • seam polisher 3~4 units
    • 1st sizing 2 (for decorative only one section 3~4 units required)
    • bright annealing +  anti-twister (optional)
    • 2nd sizing(3~4)
    • turk-head (1 unit for round, 2~3 units for square)
    • ECT (eddy current tester)
    • OD check (optional)
    • flying cutter
    • pipes collector
    • inside bead rolling (min. OD 16mm, max speed 6 m/min)
    To suit for Industrial pipes: All units are applicable for the description stated above.

    steel pipe manufacturing machine

    At ASTM standard: (1) A312 : Mechanical pipes
    (2) A249 : Heat-exchanger & Condensor .......etc.
    (3) A269 : Boiler piping ......etc.
    (4) A270 : Sanitary application.
