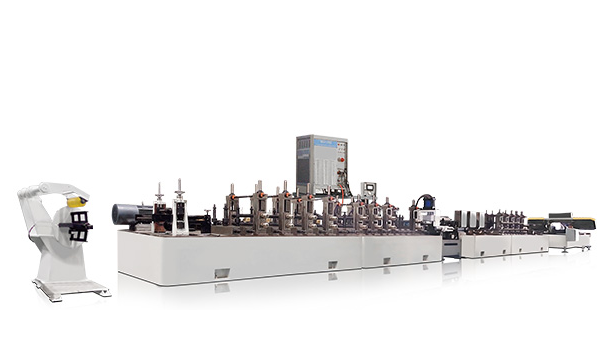

Stainless Steel Tube Pipe Forming Machine can make stainless steel pipes used for Boiling Piping.

• un-coiler
• strip jointer(optional)
• horizontal accumulater (optional)
• strip guide + strip leveler
• forming section (industrial : break down 4 + by - pass 3 +fin pass 4)
• welding section (squeezing roll set 3) + antitwister ( welder : Tig/Plasma + Tig/Tig +Plasma + Tig, according to required working thickness & speed)
• ECT (optiontal)
• seam polisher 3~4 units
• 1st sizing 2 (for decorative only one section 3~4 units required)
• bright annealing +  anti-twister (optional)
• 2nd sizing(3~4)
• turk-head (1 unit for round, 2~3 units for square)
• ECT (eddy current tester)
• OD check (optional)
• flying cutter
• pipes collector
• inside bead rolling (min. OD 16mm, max speed 6 m/min)

High-quality ! The yield more than 98% .   Save time ! Replace the mould just 40 minutes .   TPT Welding Machine Improve the quality of welding.   Hydraulic Metal Cutting Machine Improve the quality of tube ends, without burr.

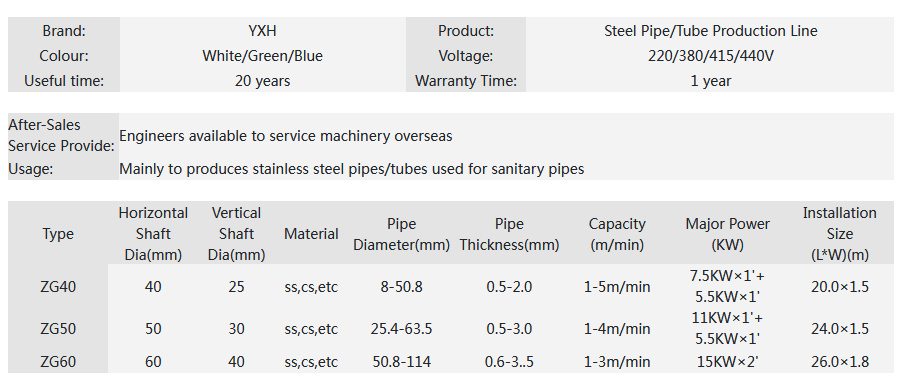

 Parameter Table for Stainless Steel Tube/Pipe Forming Machine for Boiling Piping

The Application for Stainless Steel Tube/Pipe Forming Machine

Stainless Steel Tube/Pipe Forming Machine can make stainless steel round pipes used for Boiling Piping.

• The whole machine is welded by Q235 steel plate, world’s top five hundred BAOSTEEL material ,machine vibration aging treatment
• All the key parts are processing by CNC machine centre to ensure the precision of equipment
• Quik Change-over: 40 minutes, saving 2 hours;
• Adopt Dong Feng auto transmission ,enhanced turbine gearboxes ,ensure stability of transmission system
• Machine can be customized by customer’s requirements

  ---
